| ブランド名: | Jufeng |
| モデル番号: | JF-450 |
| MOQ: | 1ユニット |
| 価格: | contact us |
| パッケージの詳細: | 木製のボックスパッケージをエクスポートします |
| 支払条件: | L/C、D/A、D/P、Western Union、T/T、MoneyGram |
45m³/min High-Purity Air Dryer for CNC Machines and Pneumatic Tools

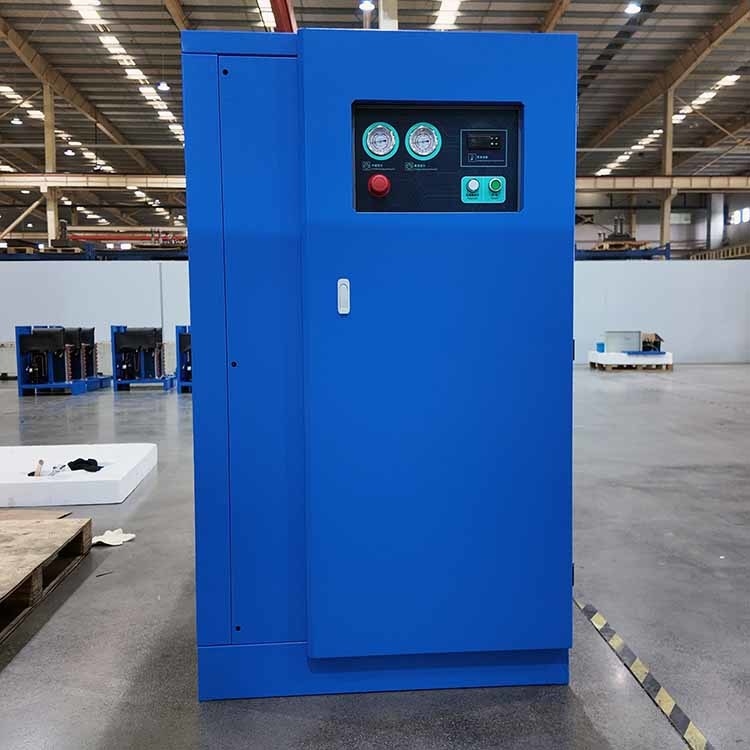

Product photo
Product parameters
| Air flow | 45m³/min | |
| Pressure | 0.7~1.3 Mpa | |
| Air inlet temperature | ≦ 60℃ | |
| Standard ambient temperature | 1~38℃ | |
| Pressure dew point | 2-10℃ | |
| Pressure loss | ≦ 0.018Mpa | |
| Drain valve | Electronic automatic drain valve | |
| Cooling method | Air-cooled | |
| Power supply V/PH/Hz | 380~415VAC 50Hz 3P | |
| Overall machine power | 9.42kw | |
| Compressor power | 9.01kw/50Hz | |
| Refrigerant | R410A | |
| Takeover method | Flange | |
| Dimensions of import and export interfaces | DN100 | |
| Size | 1418mm×920mm×1595mm | |
| Weight | 378kg | |
