| ブランド名: | Jufeng |
| モデル番号: | JS-06 |
| MOQ: | 1 unit |
| 価格: | contact us |
| パッケージの詳細: | カートンパッケージ |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
SUS304 Stainless Steel Refrigerated Air Dryer For Medical Air Compressor
Product Introduction
The Jufeng JS Series Refrigerated Air Dryer utilizes an integrated 3-in-1 heat exchanger made of SUS304 or SUS316 stainless steel. This design offers high corrosion resistance and prevents.
With higher pressure resistance, our customized products can support operating pressures of up to 5.0 MPa, enabling us to provide a wider range of drying solutions for compressed air andinert gases.

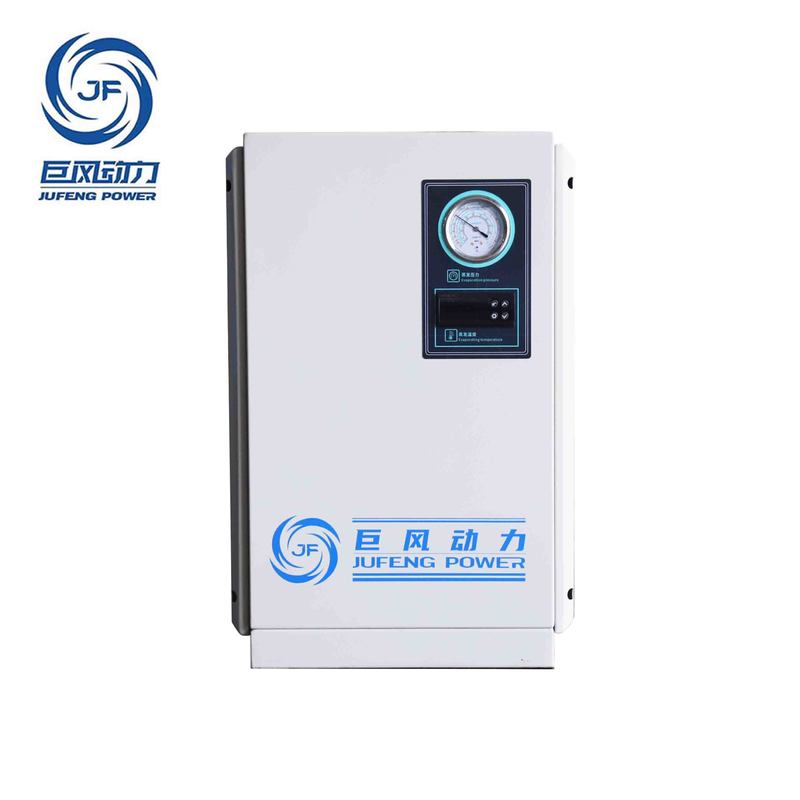

Product photo
Product parameters
| Model |
Air flow m³/min |
Pressure Mpa |
Power supply |
Air pipe connection |
Refrigerant |
Total power consumption kw |
Dimension mm |
Weight |
| JS-12 | 1.2 | 0.7~2.0 | 220~240VAC-50Hz-1P | G3/4'' | R410A | 0.54 | 620*440*825 | 37 |
| JS-16 | 1.6 | G1'' | 0.6 | 620*440*830 | 43 | |||
| JS-26 | 2.6 | 0.86 | 660*500*790 | 49.5 | ||||
| JS-38 | 3.8 | G1½'' | 0.91 | 660*500*850 | 57.5 | |||
| JS-65 | 6.9 | 1.97 | 820*580*985 | 80.5 | ||||
| JS-85 | 8.5 | G2'' | 3.3 | 820*580*985 | 126 | |||
| JS-115 | 11.5 | 3.43 | 1080*660*1100 | 126 | ||||
| JS-135 | 13.5 | 3.8 | 1080*660*1100 | 141 |
