| ブランド名: | Jufeng |
| モデル番号: | JF-250VFD |
| MOQ: | 1 unit |
| 価格: | contact us |
| パッケージの詳細: | wooden case |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
Eco-Friendly VFD Refrigerated Air Dryer
Product features
Utilizes fully enclosed refrigeration compressors from leading domestic and international brands, delivering powerful cooling and stable operation.
Heat exchangers and condensers are constructed from high-quality materials with excellent heat transfer coefficients.
Specially designed cold/heat exchangers utilize the cold output air to precool the incoming hot air, preventing pipeline condensation and improving energy efficiency.
High-performance refrigeration components and control elements ensure superior performance and extended service life.
The cooling system incorporates pressure-switch-controlled fans for precise temperature regulation and optimized refrigeration eficiency.
Unique refrigeration system design achieves lower evaporation temperatures without ice formation, adapting to complex working conditions without ice blockage.
High-precision protection devices ensure safe machine operation.
Unique suction design with a rational structure for easy maintenance.

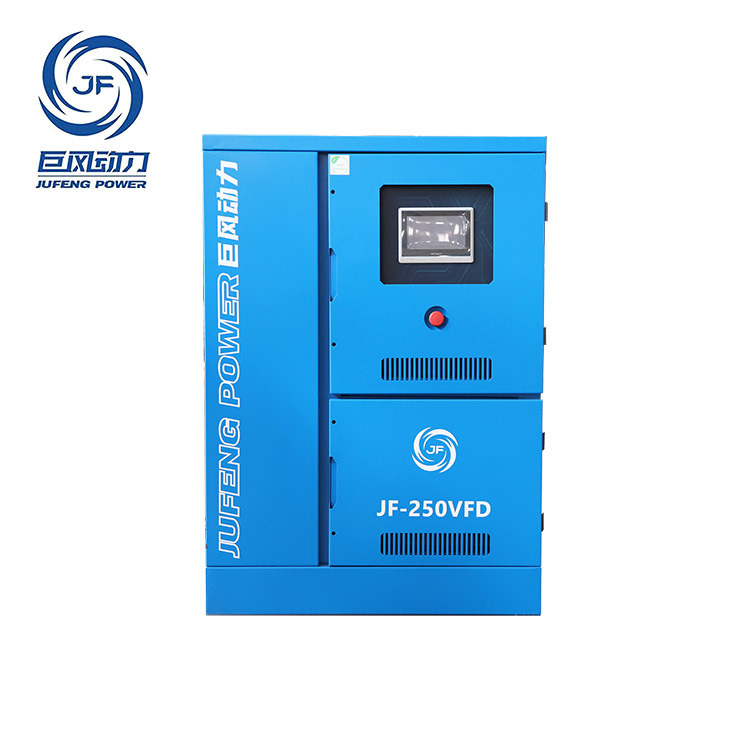

Product picture
Product parameters
| Model |
Air flow m³/min |
Pressure Mpa |
Power supply | Air pipe connection | Refrigerant |
Dimension mm |
Weight KG |
| JF-010 | 1.2 | 0.7~1.6 | 220-240VAC-50Hz-1P | G¾'' | R410A | 550*450*720 | 37 |
| JF-015 | 1.6 | G1'' | 550*450*750 | 43 | |||
| JF-020 | 2.6 | 630*450*790 | 49.5 | ||||
| JF-030 | 3.8 | G1½'' | 660*450*850 | 57.5 | |||
| JF-050 | 6.9 | 860*530*960 | 80.5 | ||||
| JF-085 | 8.5 | 86.2 | |||||
| JF-105 | 10.5 | 220-380VAC-50Hz-1P | G2'' | 920*560*1060 | 96.8 | ||
| JF-135 | 13.5 | 380-415VAC-50Hz-3P | 1150*660*1110 | 126 | |||
| JF-150 | 15 | 141 | |||||
| JF-180 | 18 | G2½‘’ | 1310*818*1392 | 240.5 | |||
| JF-220 | 23 | ||||||
| JF-250 | 25 | G3'' | 1300*870*1441 | 256 | |||
| JF-280 | 28 | ||||||
| JF-320 | 32 | 0.7~1.3 | DN100 | 1420*920*1586 | 332 | ||
| JF-380 | 38 | 373 | |||||
| JF-450 | 45 | 382 | |||||
| JF-500 | 50 | 1860*1500*1790 | 695 | ||||
| JF-550 | 55 | DN125 | |||||
| JF-600 | 60 | ||||||
| JF-650 | 65 |
