| ブランド名: | Jufeng |
| モデル番号: | JF-100A |
| MOQ: | 1 |
| 価格: | Contact us |
| パッケージの詳細: | Wooden case |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
Energy Efficient 100 HP Direct Driven Screw Compressor | Low Maintenance & Reduced Downtime

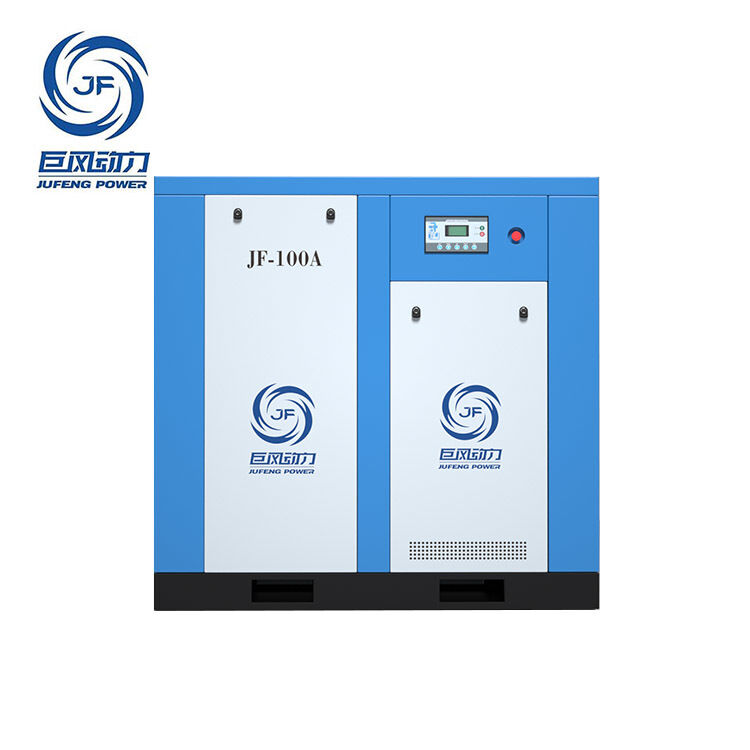

Product photo
Product introduction
The 100 HP (75kW) direct-drive rotary screw air compressor is engineered for continuous, heavy-duty industrial applications where reliability and energy efficiency are critical. By eliminating the need for gears or belts, the direct-drive transmission ensures maximum power transfer with minimal energy loss, significantly reducing maintenance and downtime.
Key features include a robust asymmetric screw rotor profile for optimal airflow and lower specific power consumption, integrated intelligent controllers for real-time monitoring and system protection, and a large-capacity cooling system designed for stable 24/7 operation. It delivers high-volume compressed air with consistent pressure, making it an ideal power source for large-scale manufacturing, automotive, textile, and chemical processing plants.
Built for longevity and total cost savings, this compressor offers a durable, low-friction design that extends service intervals and cuts lifecycle operating costs. It represents the industry standard in performance, providing a dependable and efficient compressed air solution for your most demanding production environments.
Product parameters
| Model | JF-100A |
| Power | 75kw |
| Working pressure | 7-12bar |
| Air flow | 10.5-13m³/min |
| Size | 1800x1250x1670mm |
| Weight | 1350kg |
| Speed | 2970rpm |
| Air outlet | G2'' |
