Compact & Quiet Maglev Compressor for Manufacturing
Product introduction
The new generation of oil-free high-speed magnetic levitation centrifugal air compressor of Jufeng adopts advanced magnetic levitation bearing technology, ensuring that the rotor has no contact or friction with the casing during high-speed operation.
Advantages of magnetic levitation centrifugal air compressors
100% oil-free: The entire process of compressed air is oil-free contact, providing the highest grade of clean air source.
High efficiency and energy saving: Magnetic levitation technology eliminates mechanical losses. Combined with high-speed permanent magnet motors, it saves energy by up to 30% to 40% compared to traditional air compressors.
Low maintenance cost: No need for lubricating oil, oil filters or other consumables, fundamentally reducing maintenance costs and downtime risks.
Silent and stable: Smooth operation with significantly reduced noise, providing an outstanding silent experience for the working environment.
It is perfectly suitable for fields such as food and medicine, electronics and semiconductors, and precision manufacturing, which have strict requirements for air quality and energy consumption. It is an ideal power source for driving the upgrading of modern industry.

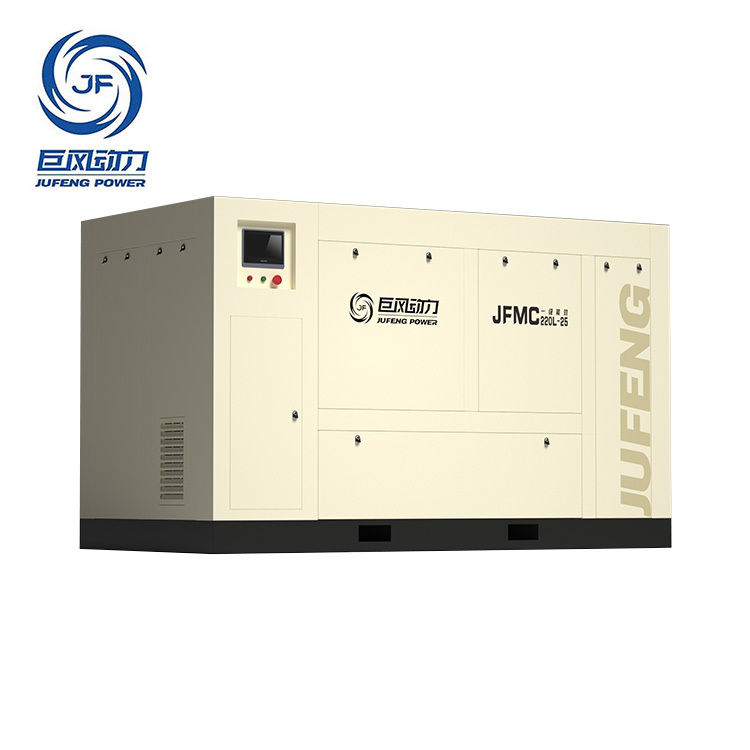

Product photo
Product parameters
| Product model | JFMC220L-25 |
| Suction pressure | 101.3kPa |
| Displacement | 75m³/min |
| Exhaust pressure | 250kPa |
| Motor | 220kw |
| Speed | 36000rpm |
| Voltage/Frequency | 380v/50hz |
| Size | 3150*1650*1953mm |
| Weight | 1688kg |
